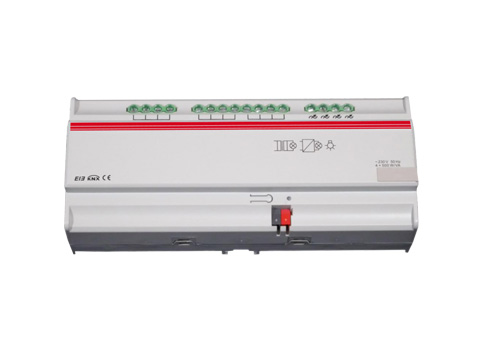

Dimmer 4folds,400WCH

Power Supply

Operating voltage 21~30VDC, made available by the EIB-BUS

Input Voltage

230VAC (50/60Hz)

Dimming Output

1 channel

Output Voltage

230 V AC (50/60Hz)

Max. Output Capacity

400W per out output

Max. Leakage Loss

5W

Connections

1 KNX/EIB BUS connection terminal

Load Circuits

2 connection terminals per output

Cable Cross-section

single core 0.2~4.0mm2
Multi core 0.2~2.5 mm2

Operation Display

LED and push button for assigning the physical address
